M7 Heavy Duty Storage Racks

Heavy Duty Storage Racks

Mecalux M7

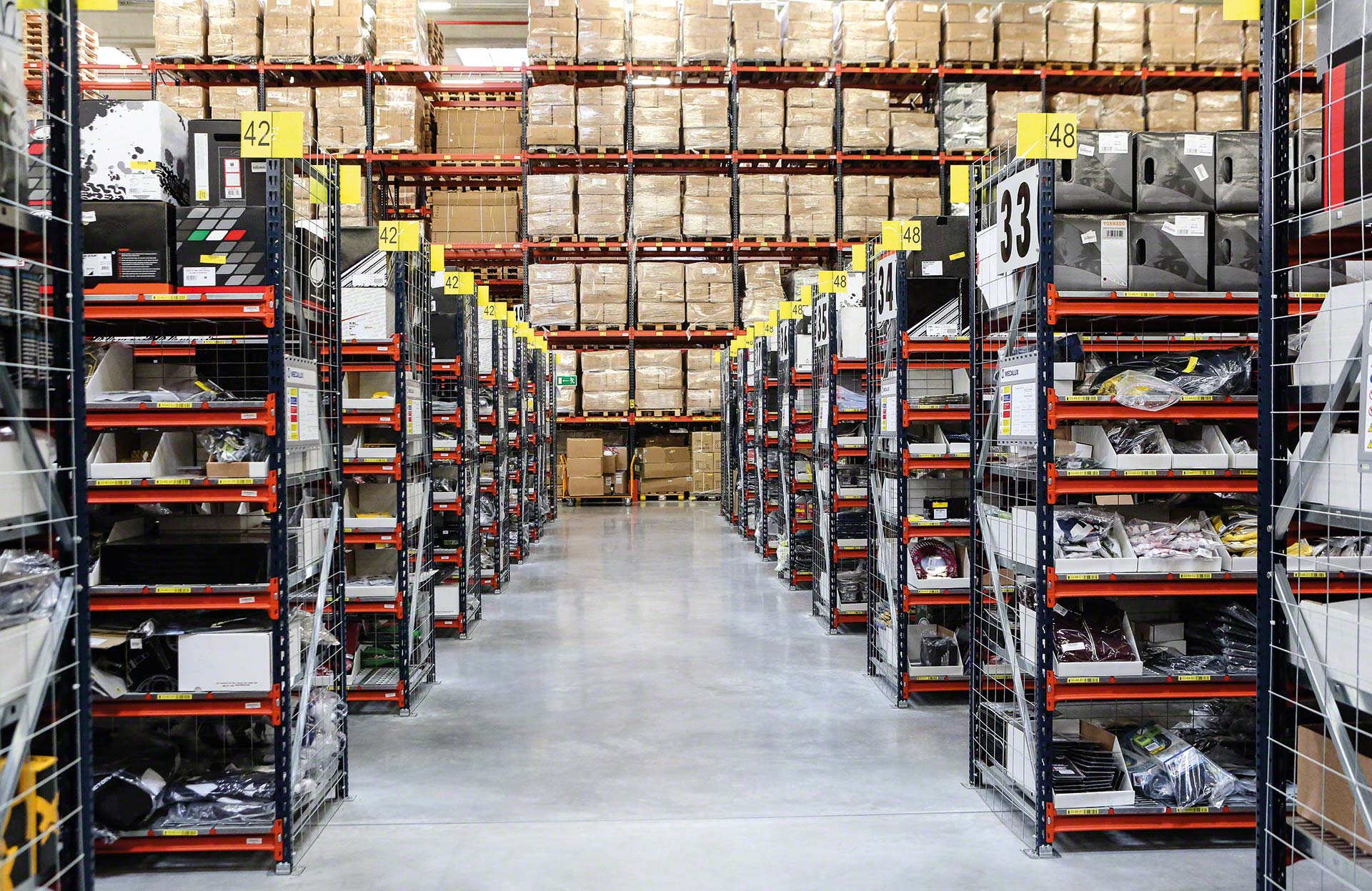

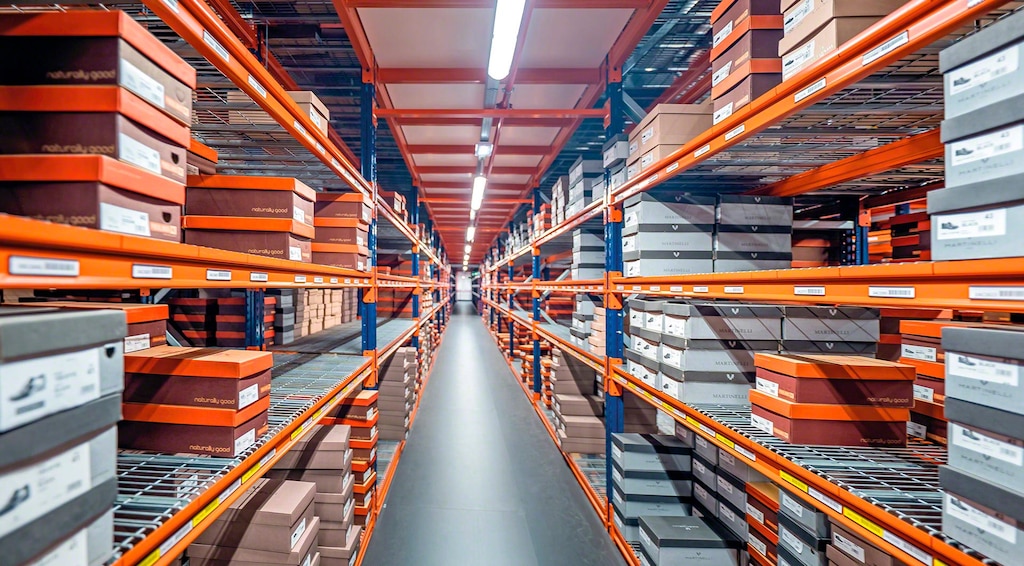

M7 heavy duty racks are commonly used in picking warehouses, supporting weights of over 1,000 kg per level.

The product

Great strength and maximum versatility to optimise warehouse throughput

Mecalux’s M7 heavy duty racks are the perfect solution for housing medium and heavy products. They offer manual access to goods stored, facilitating and streamlining person-to-goods order picking.

Thanks to their wide range of accessories and multiple configurations, M7 heavy duty racks are compatible with different types of spaces. Moreover, they can accommodate a variety of loads, from boxes and packages to tyres, hanging garments and bulky products. Heavy duty storage racks are robust structures with a high load capacity (over 1,000 kg per level) and can stand 20 m high.

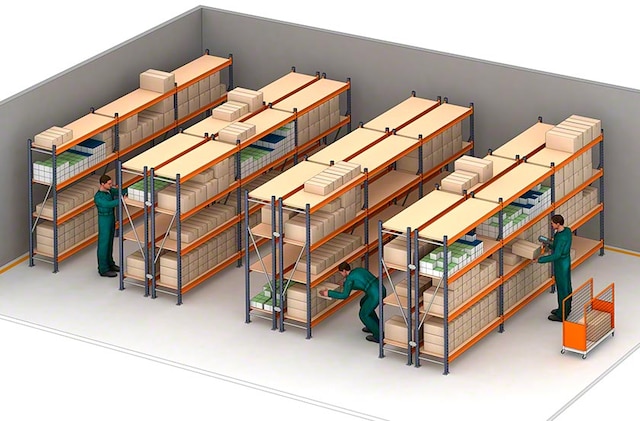

Heavy duty racks are storage systems for medium and heavy goods

Advantages of M7 heavy duty racks and shelving

  • High load capacity: M7 heavy duty racking can support up to 1,000 kg per storage level.
  • Multifunctional: the various available configurations and a wide array of accessories serve multiple types of loads.

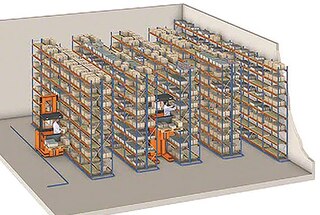

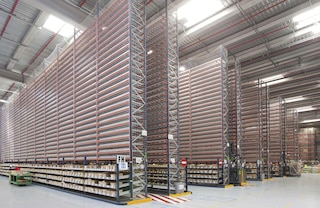

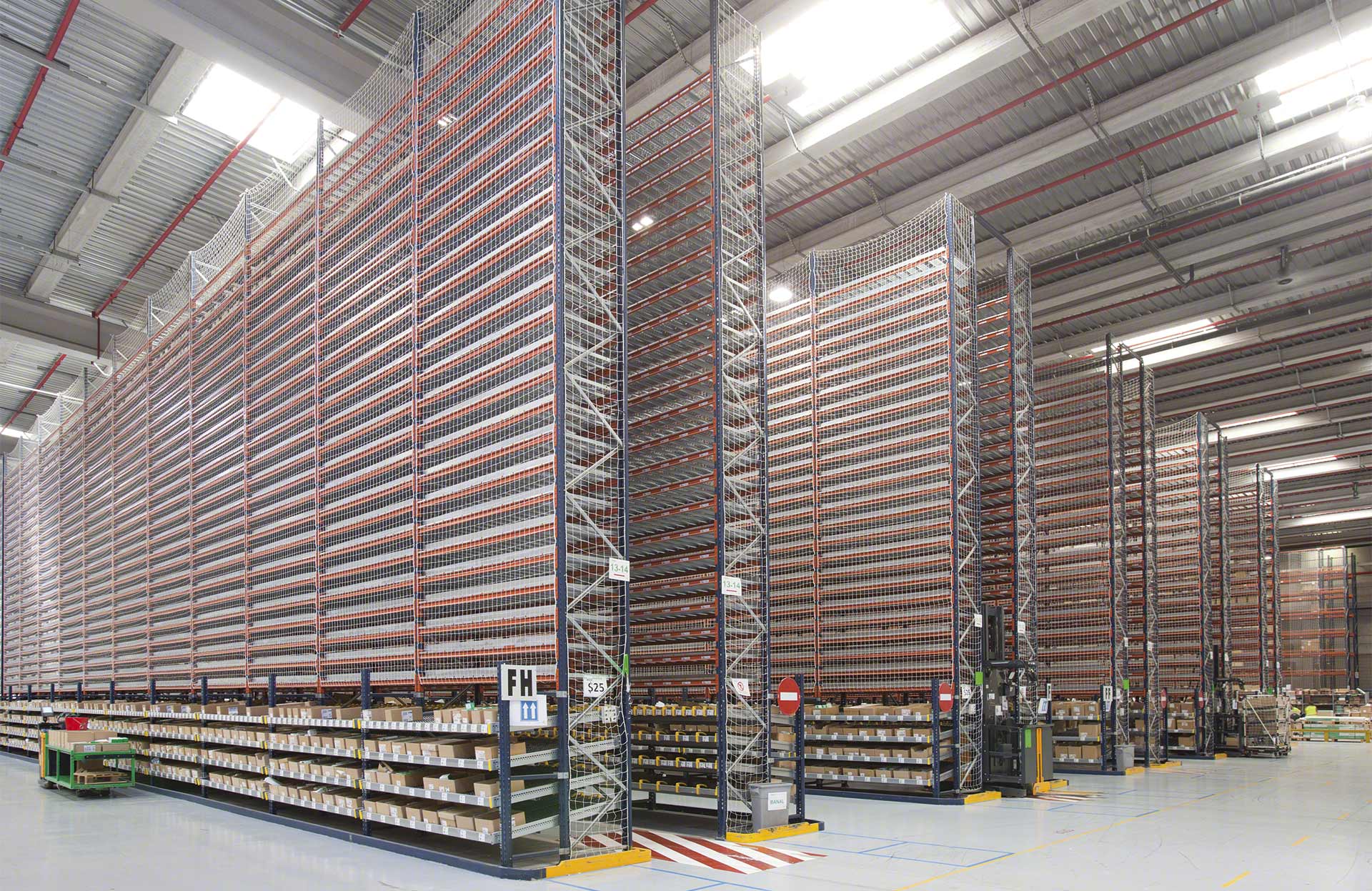

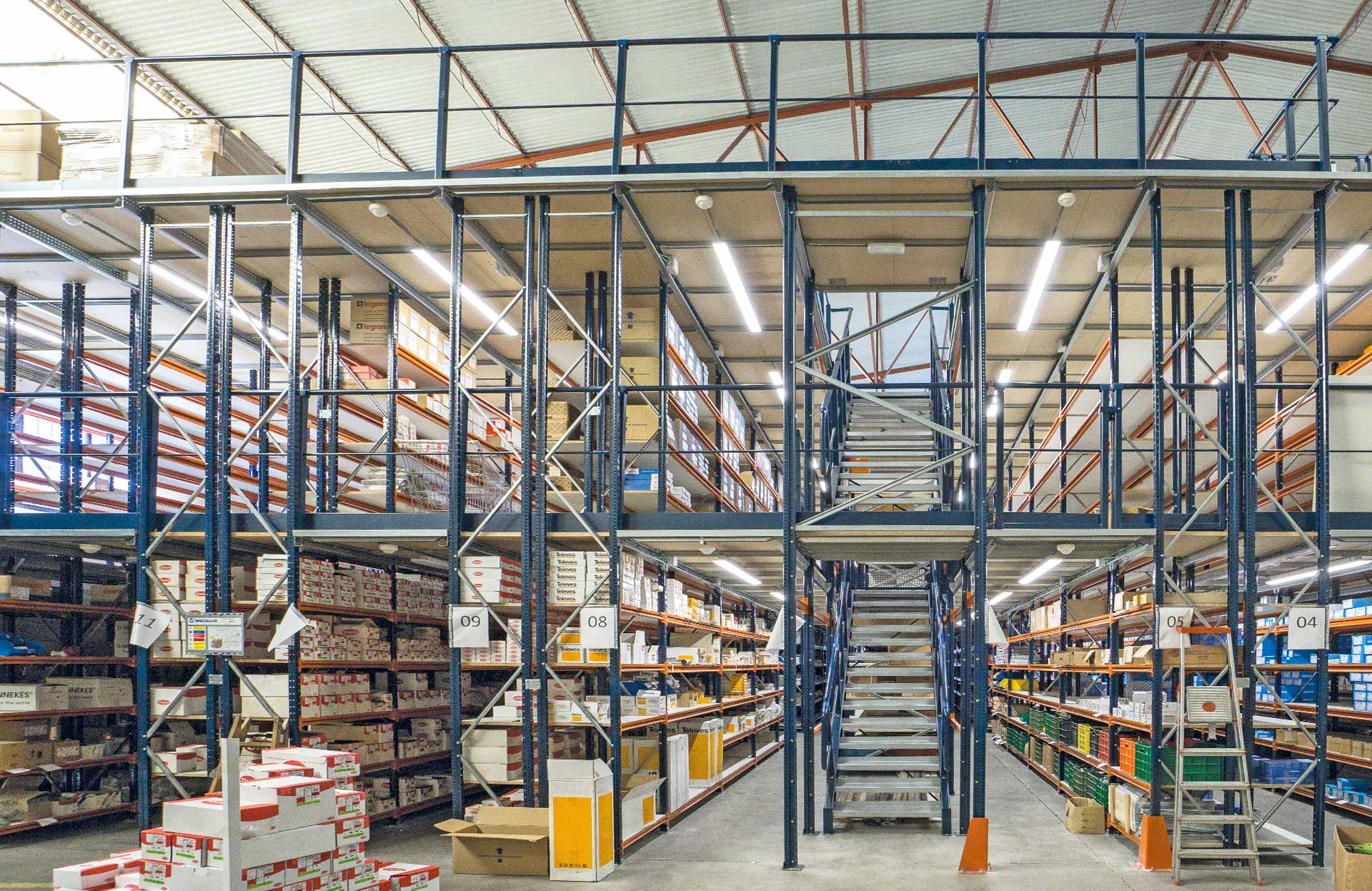

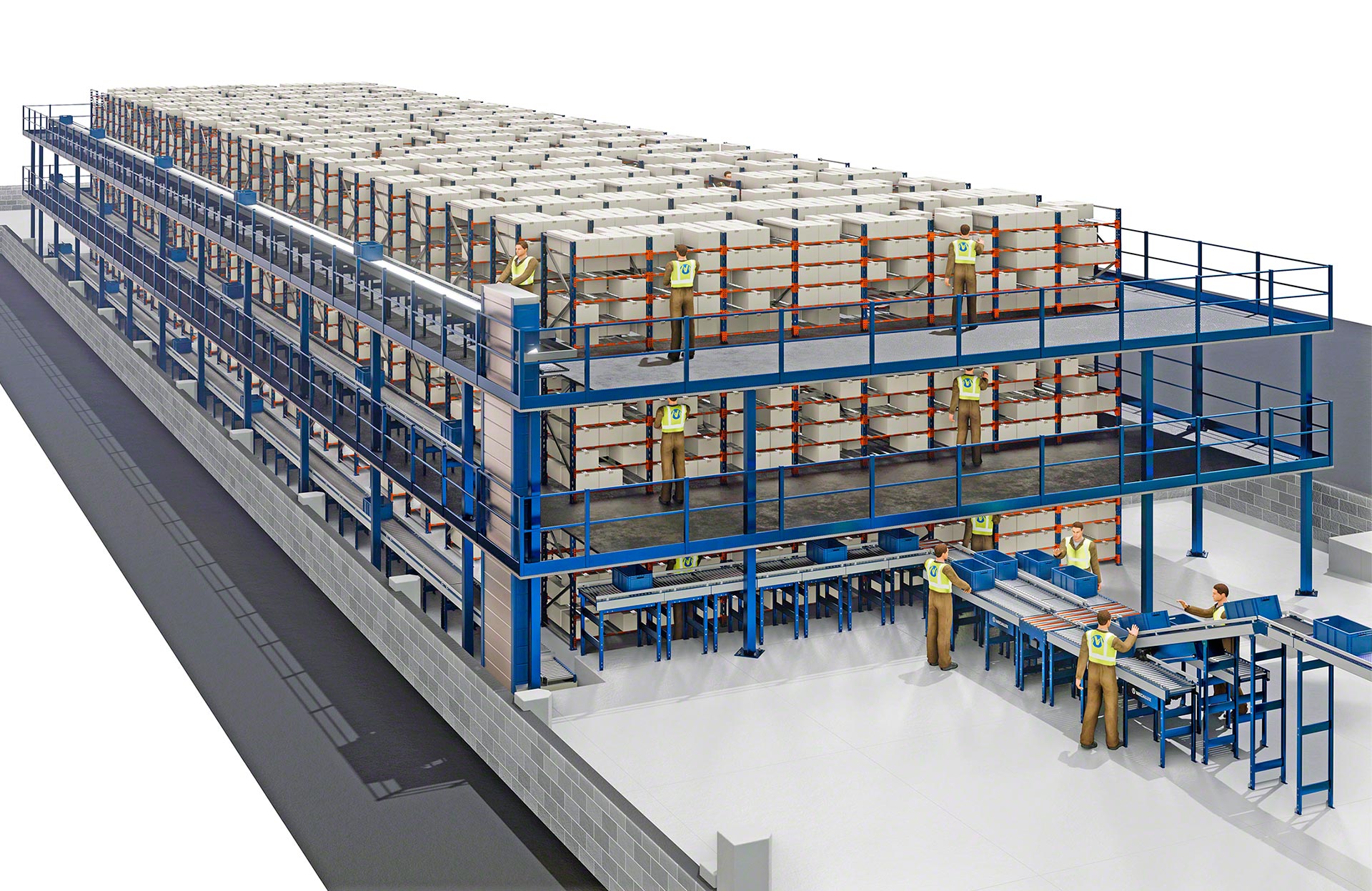

  • High-bay storage capacity: racks can be designed up to 12 m high to work with order picker machines and up to 20 m high with access to the upper levels via raised walkways.
  • Flexibility: the height of the shelves can be adjusted in increments of 50 mm. This adapts the space of each level to the size of the products.
  • Scalability: heavy duty racking systems can be expanded easily through additional modules or levels in height.
  • Easy assembly: heavy duty shelving is quick and simple to install, with just a few steps and clear, straightforward instructions.
  • Minimal maintenance and maximum durability: M7 heavy duty racks are sturdy structures with a long lifespan.

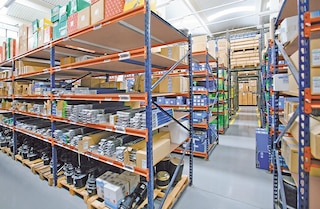

M7 heavy duty racking offers multiple advantages

M7 heavy duty racks are ideal for our products and make the most of our warehouse space

Würth Modyf
Juan Martínez Operations Manager
Würth Modyf
(Polinyà, Spain)

Applications of heavy duty metal shelving

Extremely versatile solution adaptable to all businesses

M7 industrial storage racks for heavy duty use are a highly robust, stable and reliable storage system. They effectively meet the demands of a wide range of warehouses, workshops and production centres.

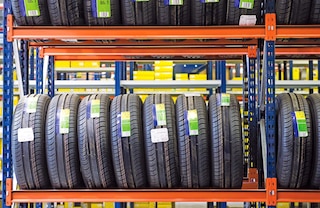

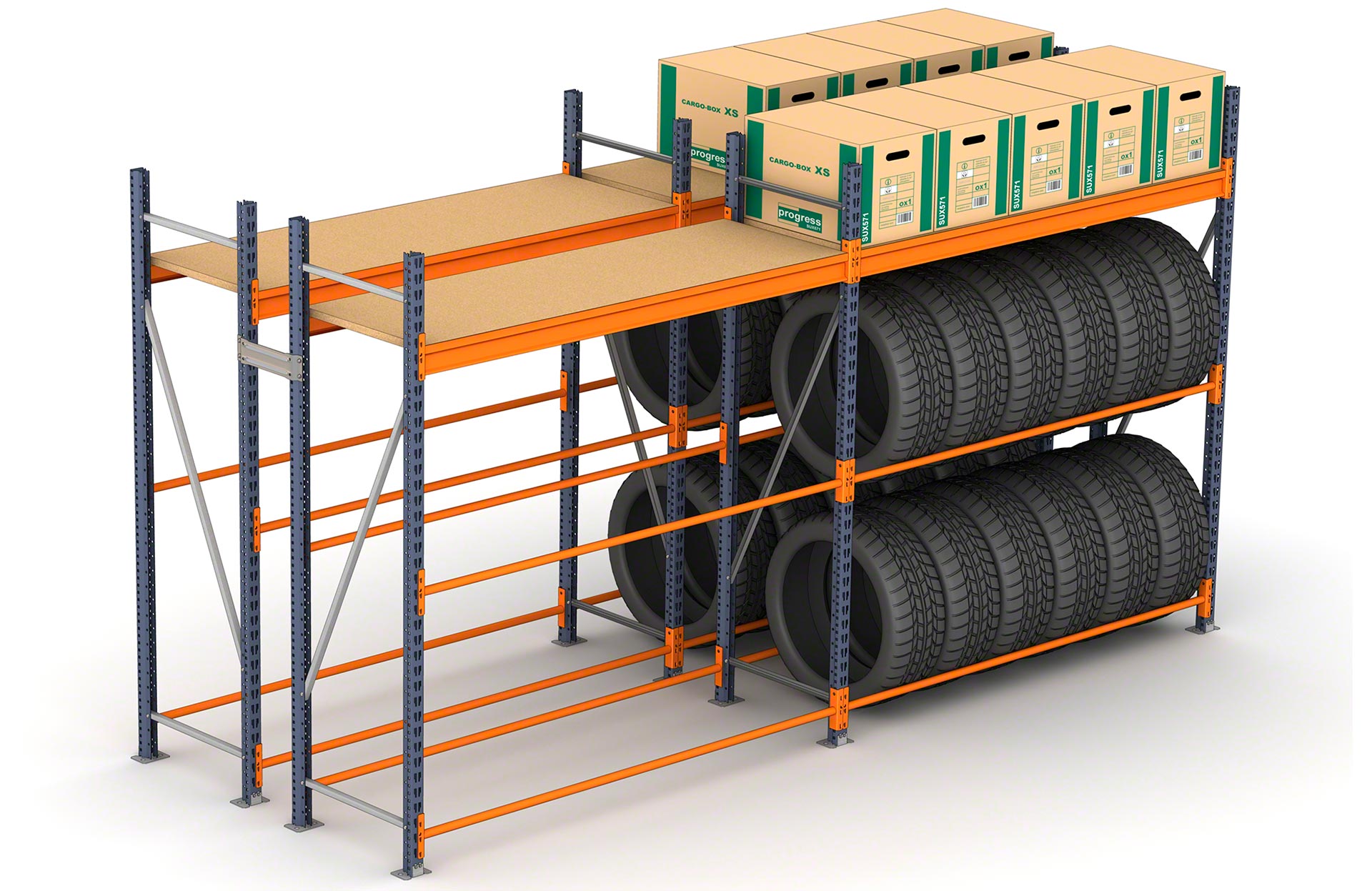

Heavy duty metal shelving supports different types of heavy loads

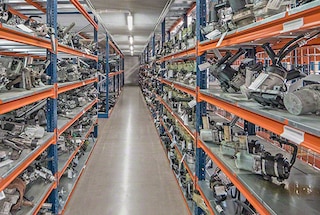

Heavy product storage

Heavy duty steel racks support various types of loads and considerable weight.

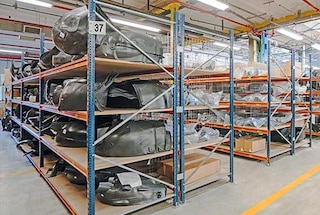

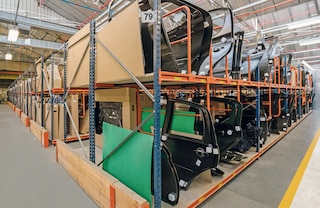

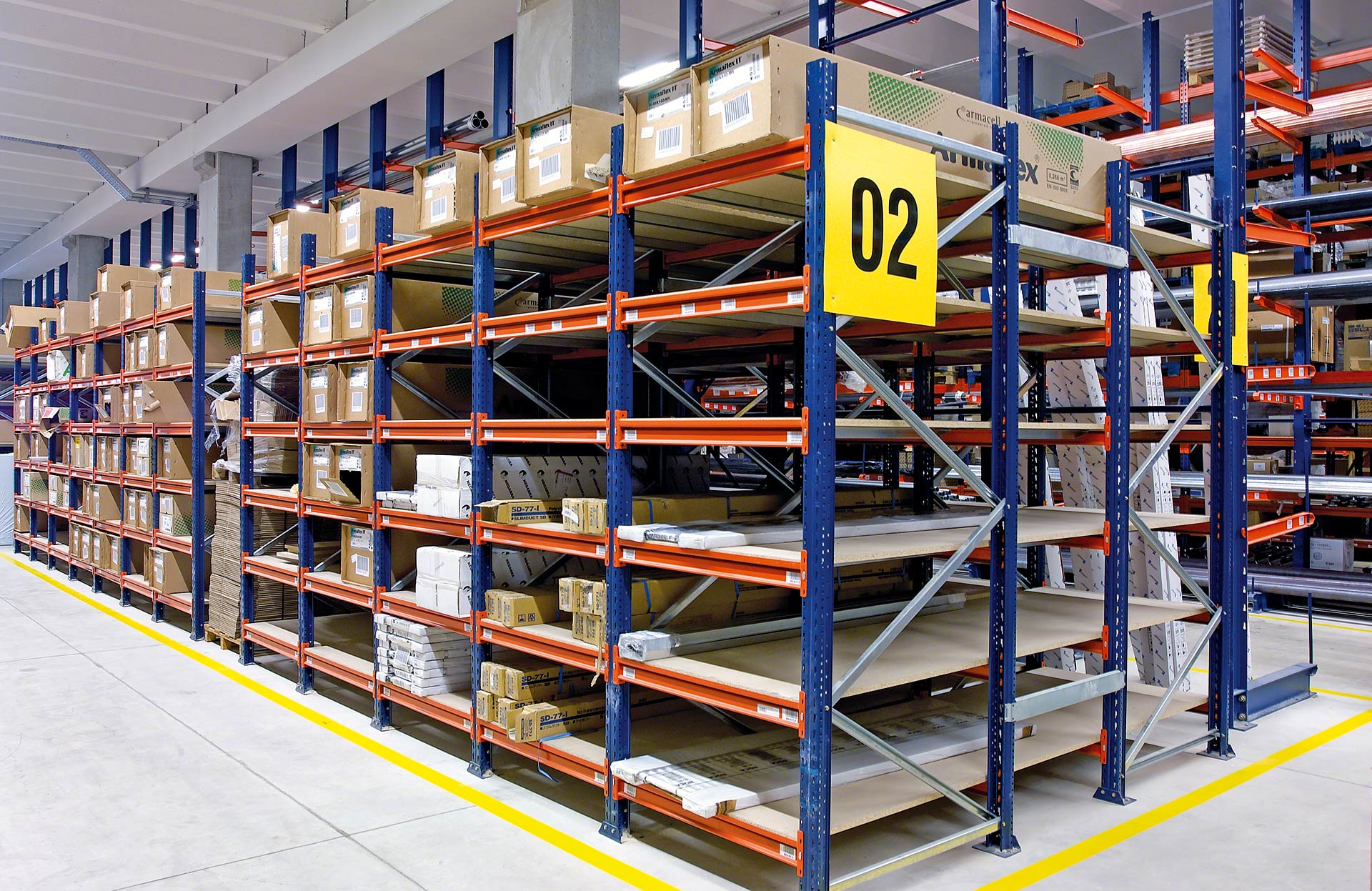

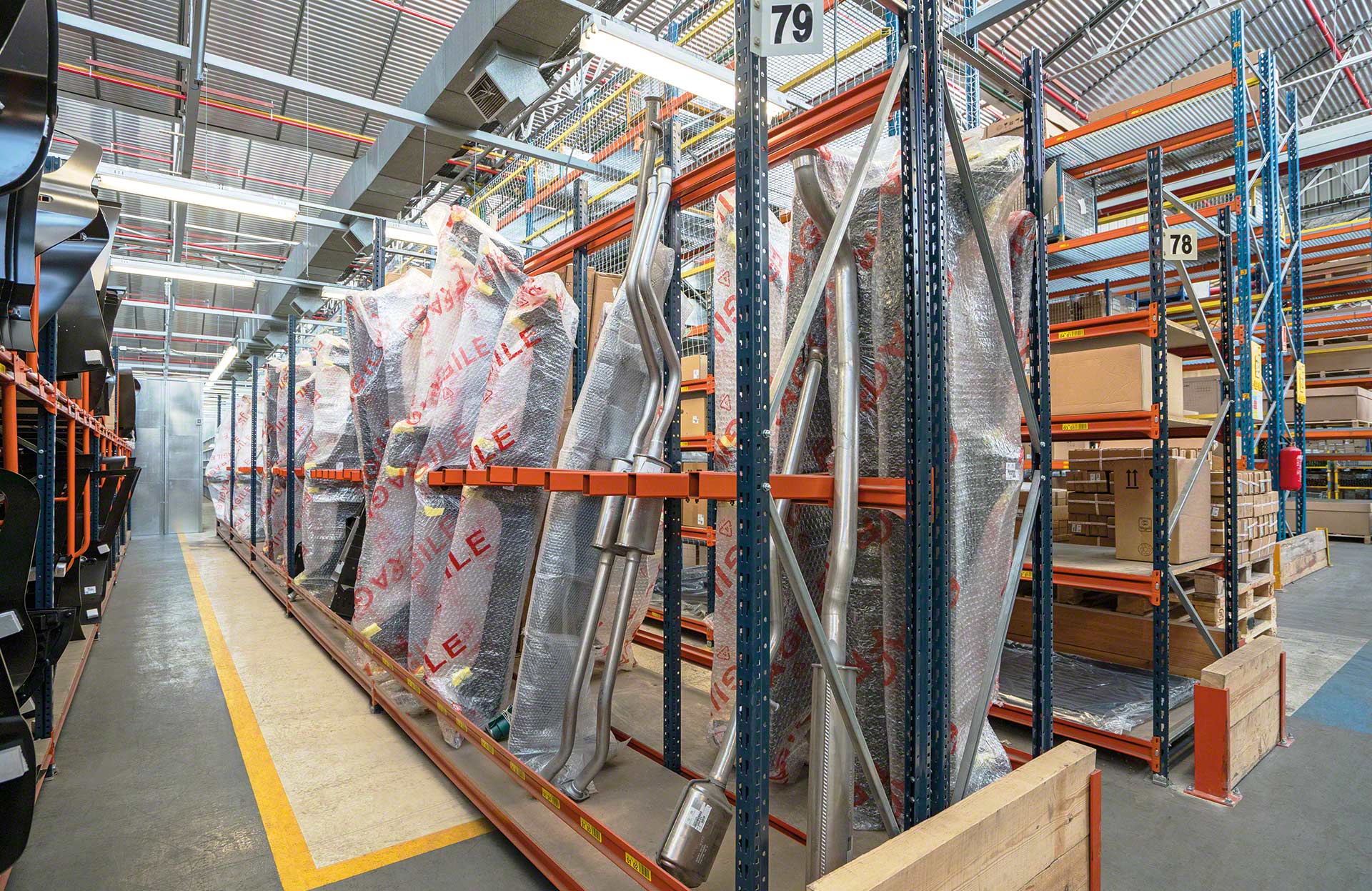

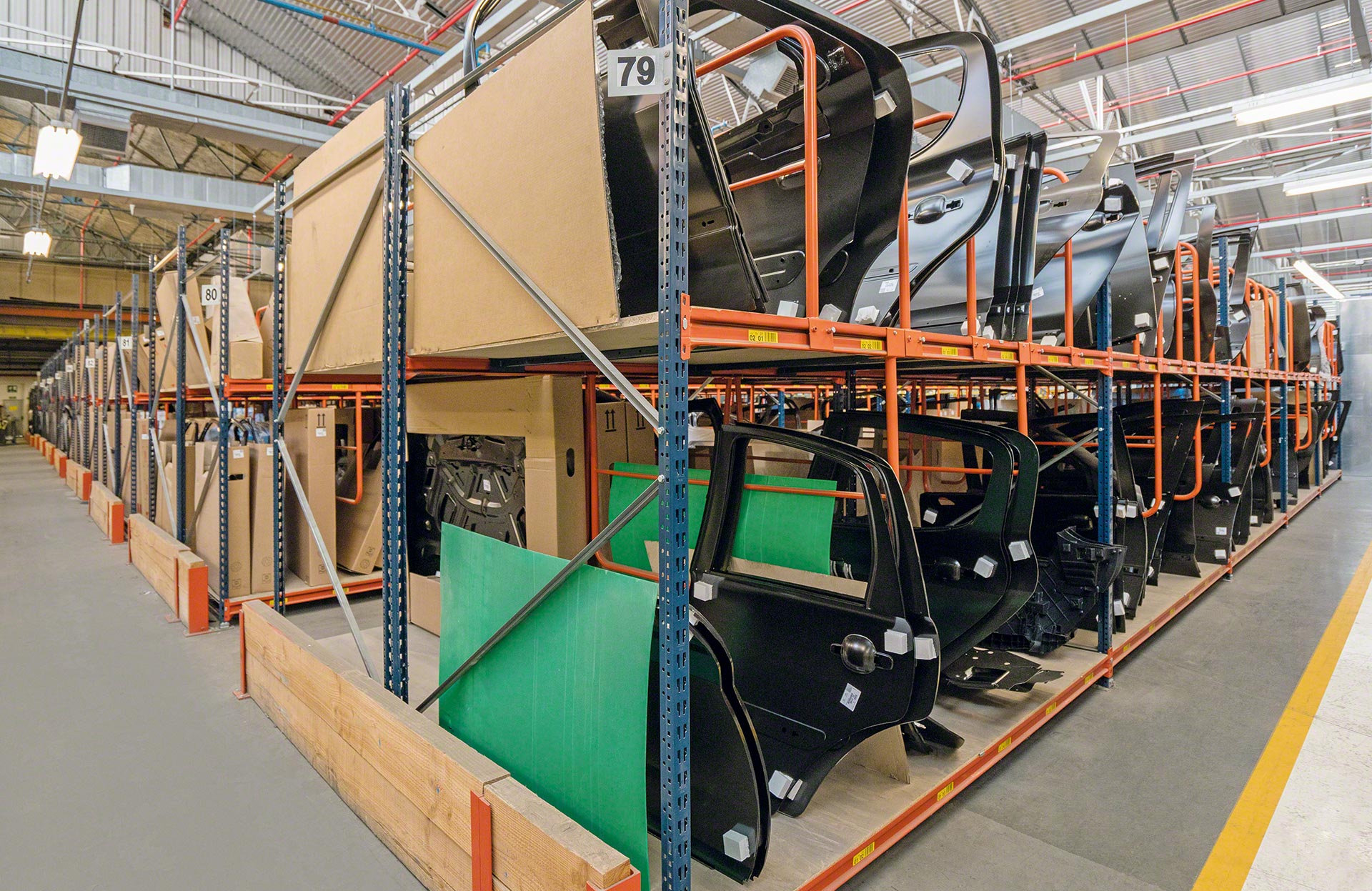

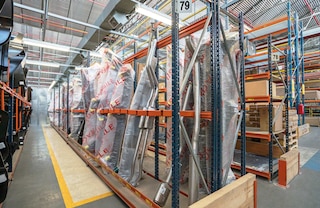

Heavy duty racks can store bulky loads

Bulky goods storage

The racks adapt perfectly to large loads thanks to their longspan shelving and depth. Moreover, they can be expanded vertically.

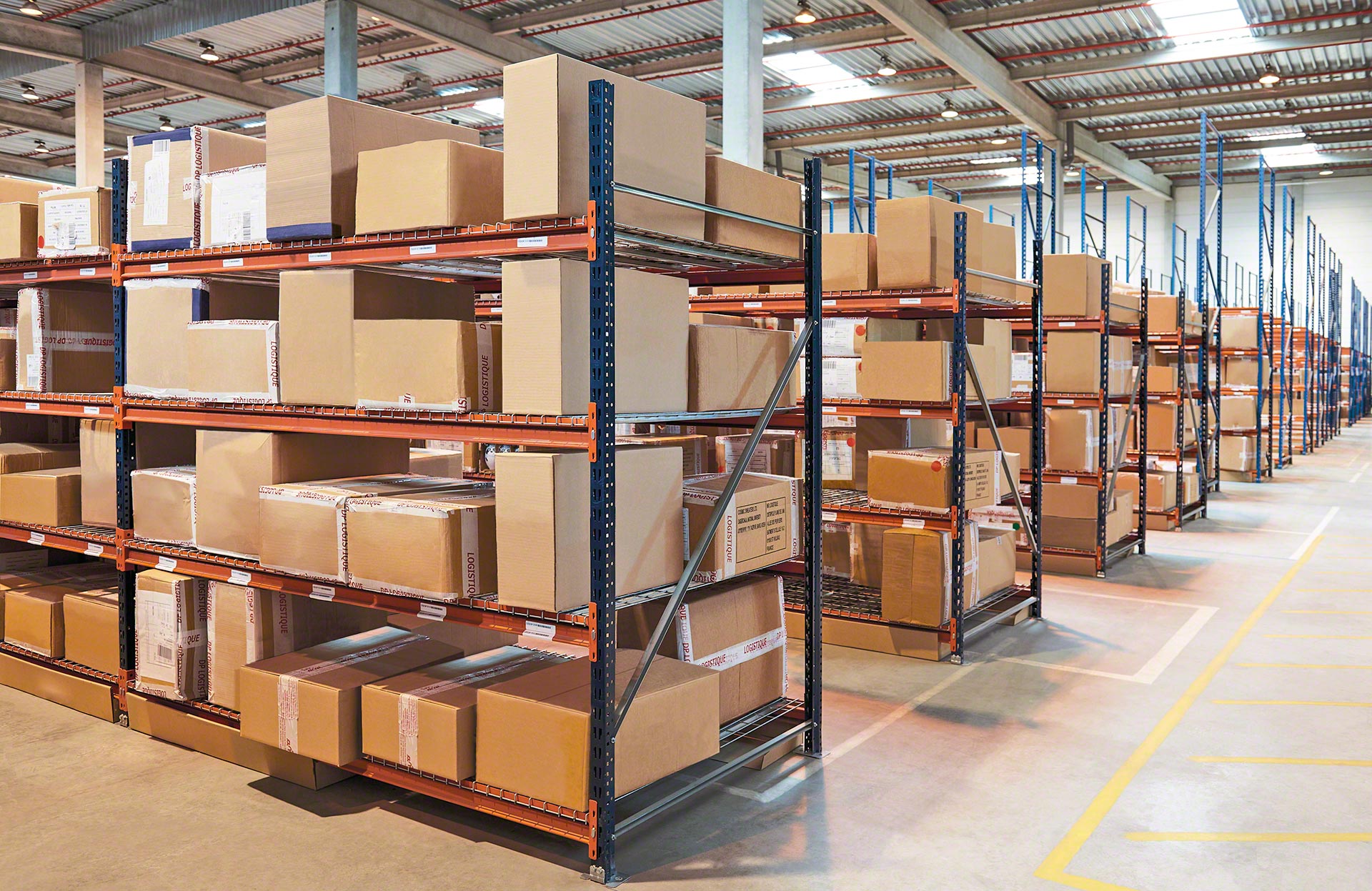

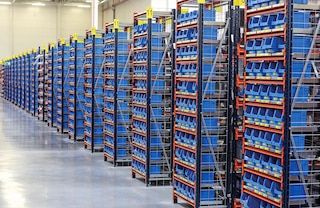

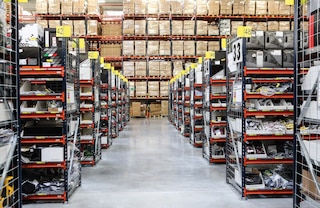

M7 heavy duty racking facilitates the storage of multiple SKUs

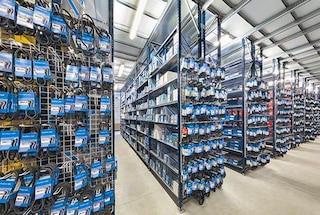

Multiple SKU storage

This solution is optimal for accommodating a large number of different SKUs with varying turnover rates.

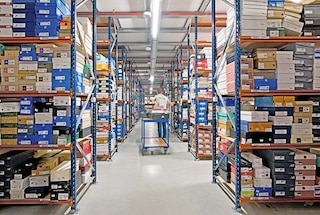

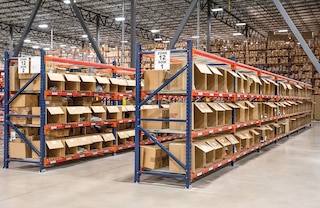

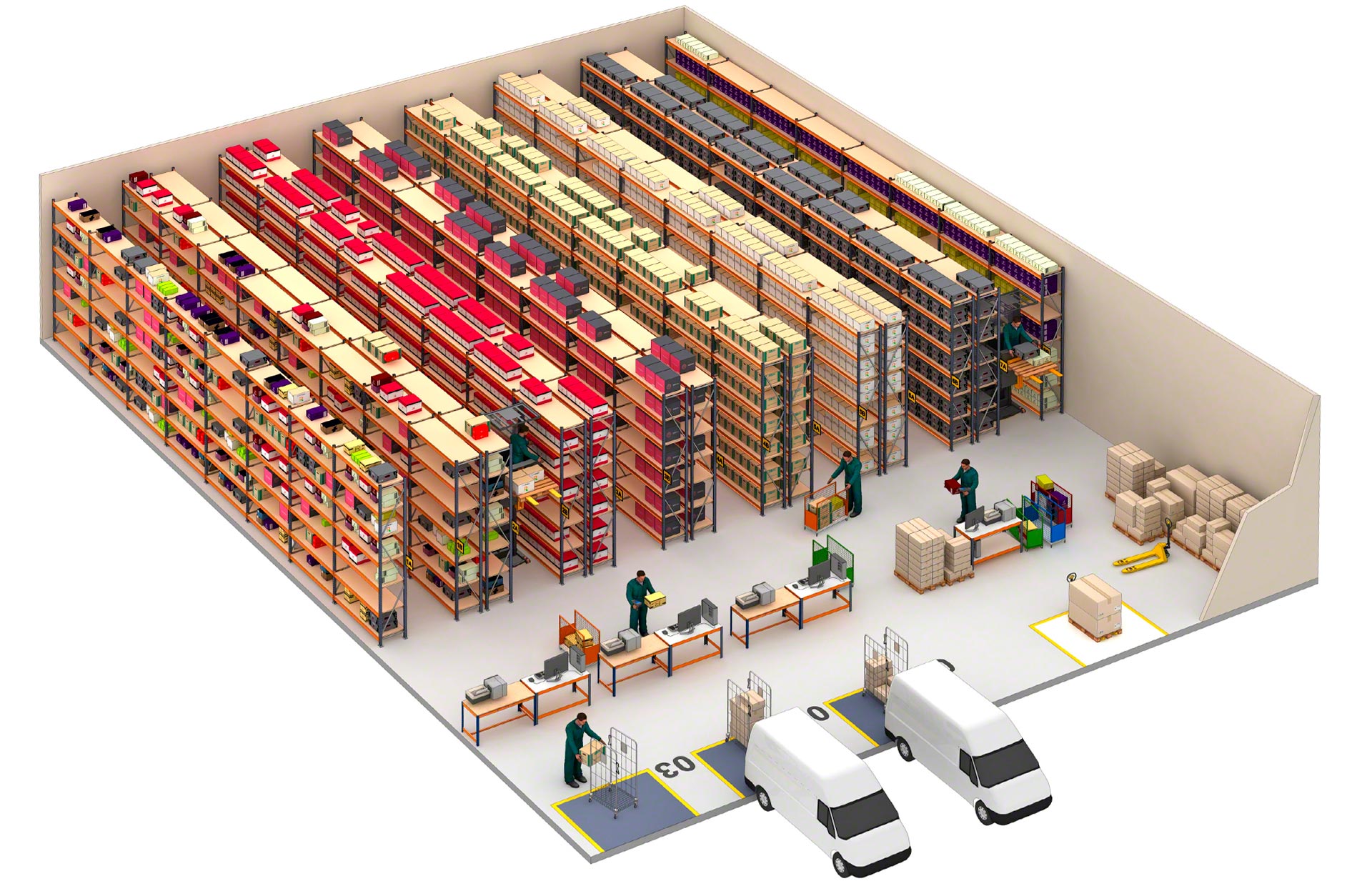

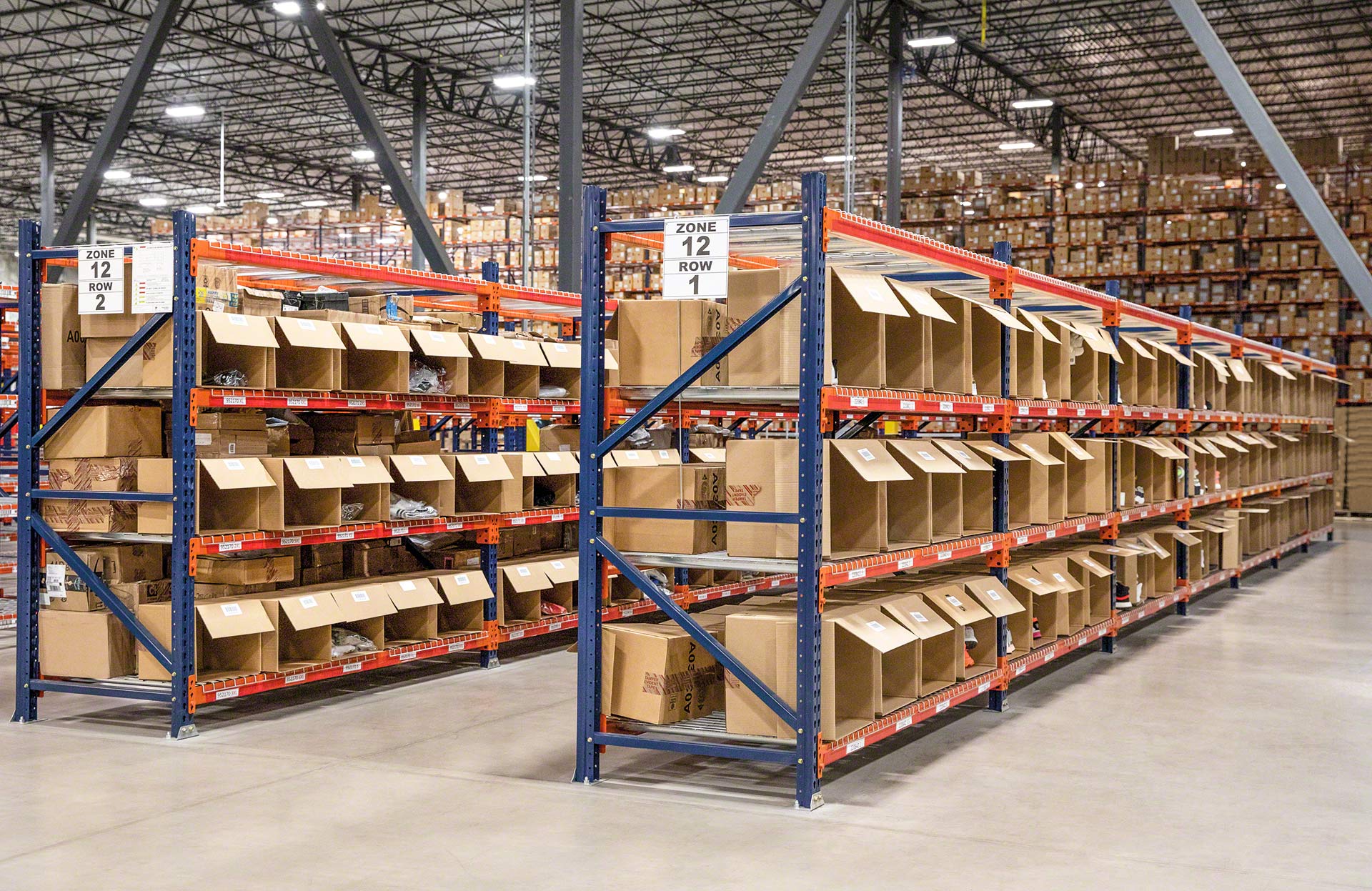

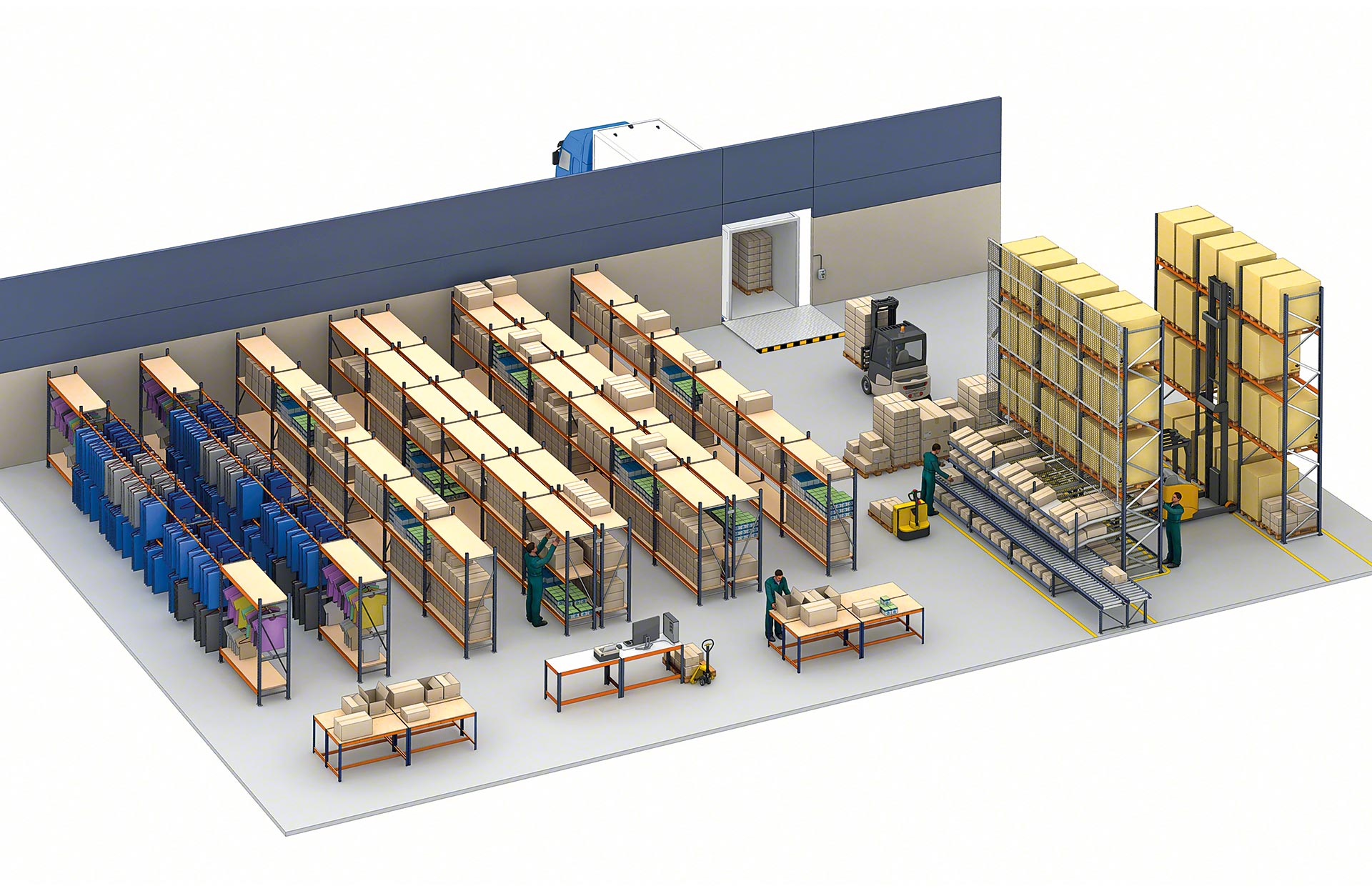

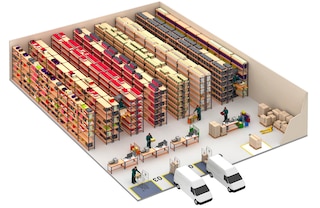

M7 heavy duty shelving racks are perfect for e-commerce warehouses

E-commerce warehouses

Manual access to SKUs stored expedites picking operations.

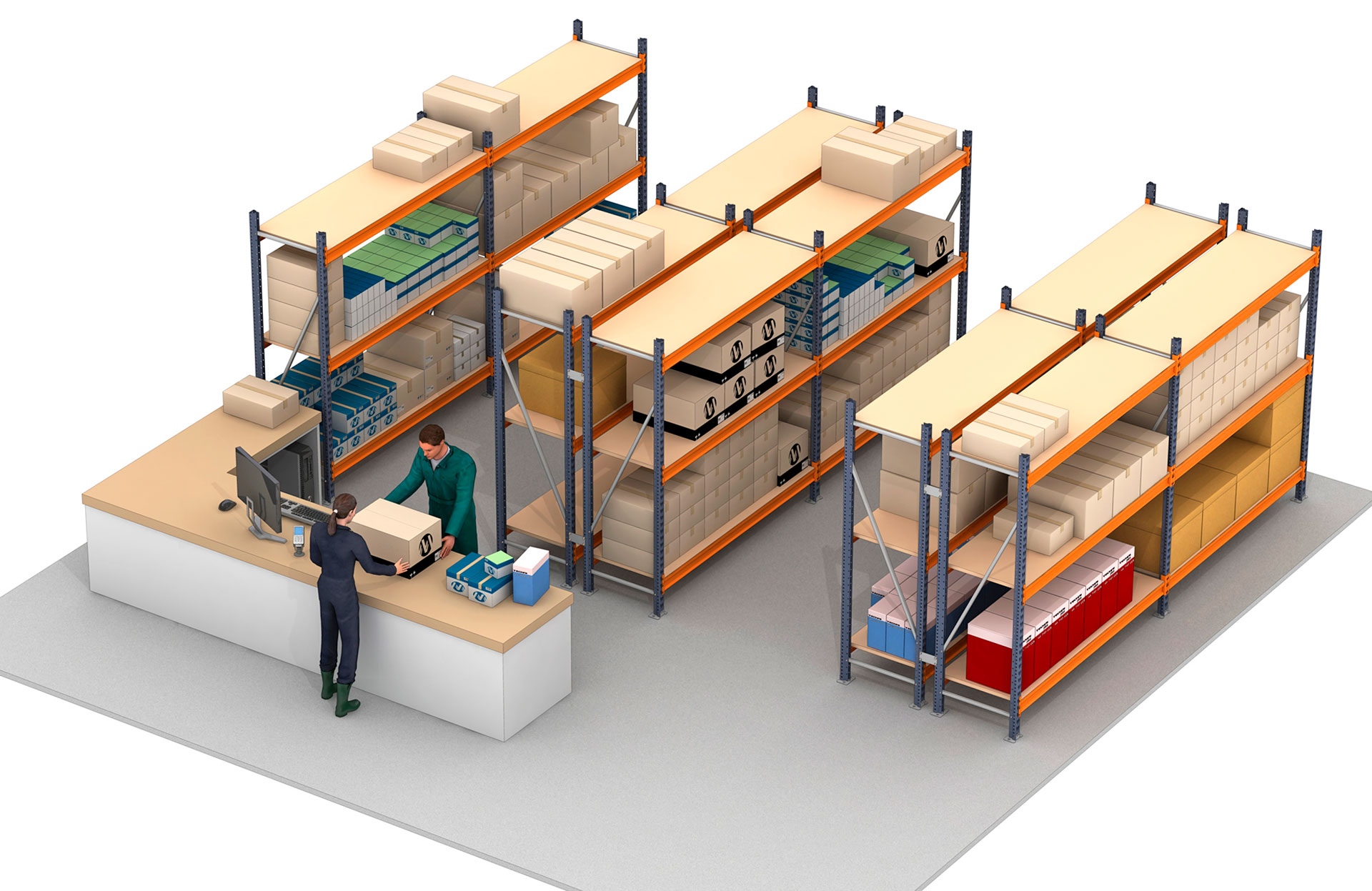

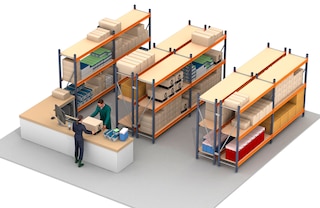

Heavy and medium duty racks and shelving are a practical option for packaging facilities

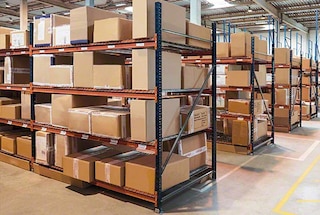

Packaging facilities

Heavy and medium duty racks effectively house boxes of multiple weights and sizes.

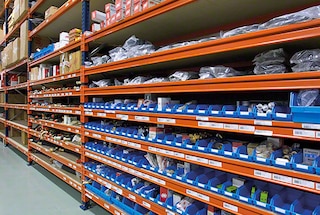

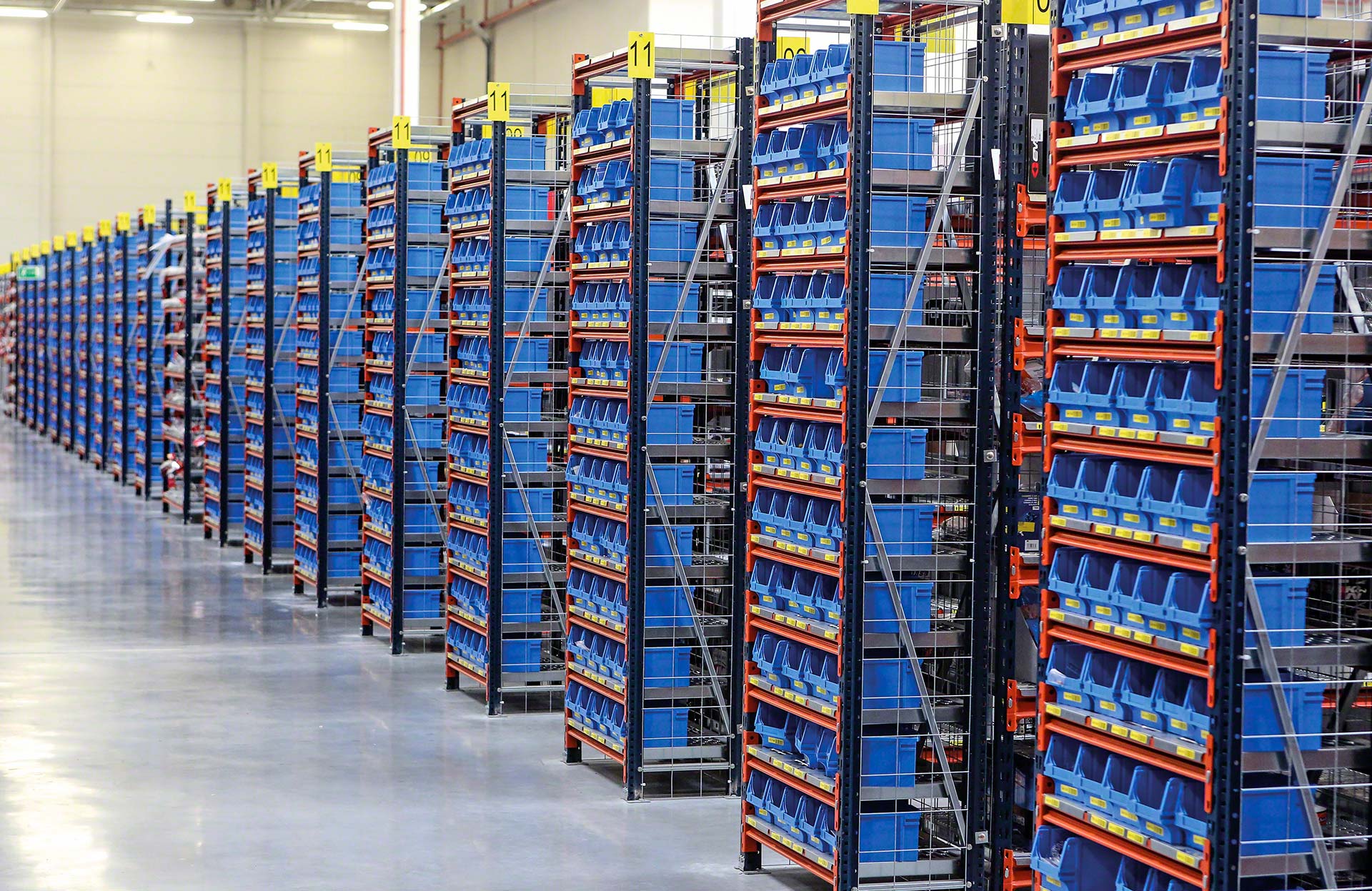

Heavy duty racking can also be used to store spare parts

Spare parts warehouses

Accessories such as plastic drawers and dividers enable the storage of various small parts.

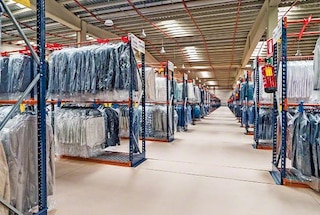

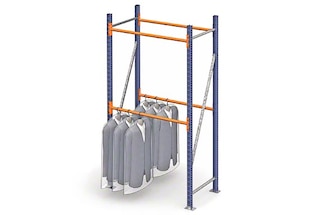

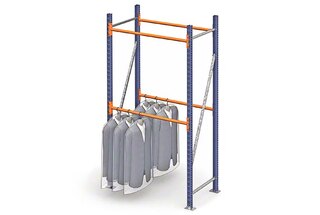

Heavy duty racks can accommodate hanging garments

Hanging garment storage

Incorporating hanger tubes makes it possible to store clothes vertically.

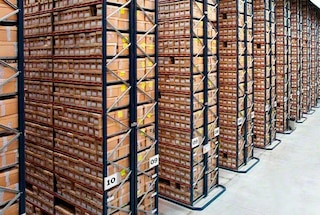

Heavy duty storage racks are often used in archives and document centres

Archives and document centres

M7 heavy duty racks can house file boxes in document warehouses.

M7 heavy duty racking configurations

Multifunctional storage system compatible with multiple types of loads

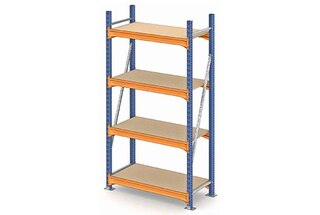

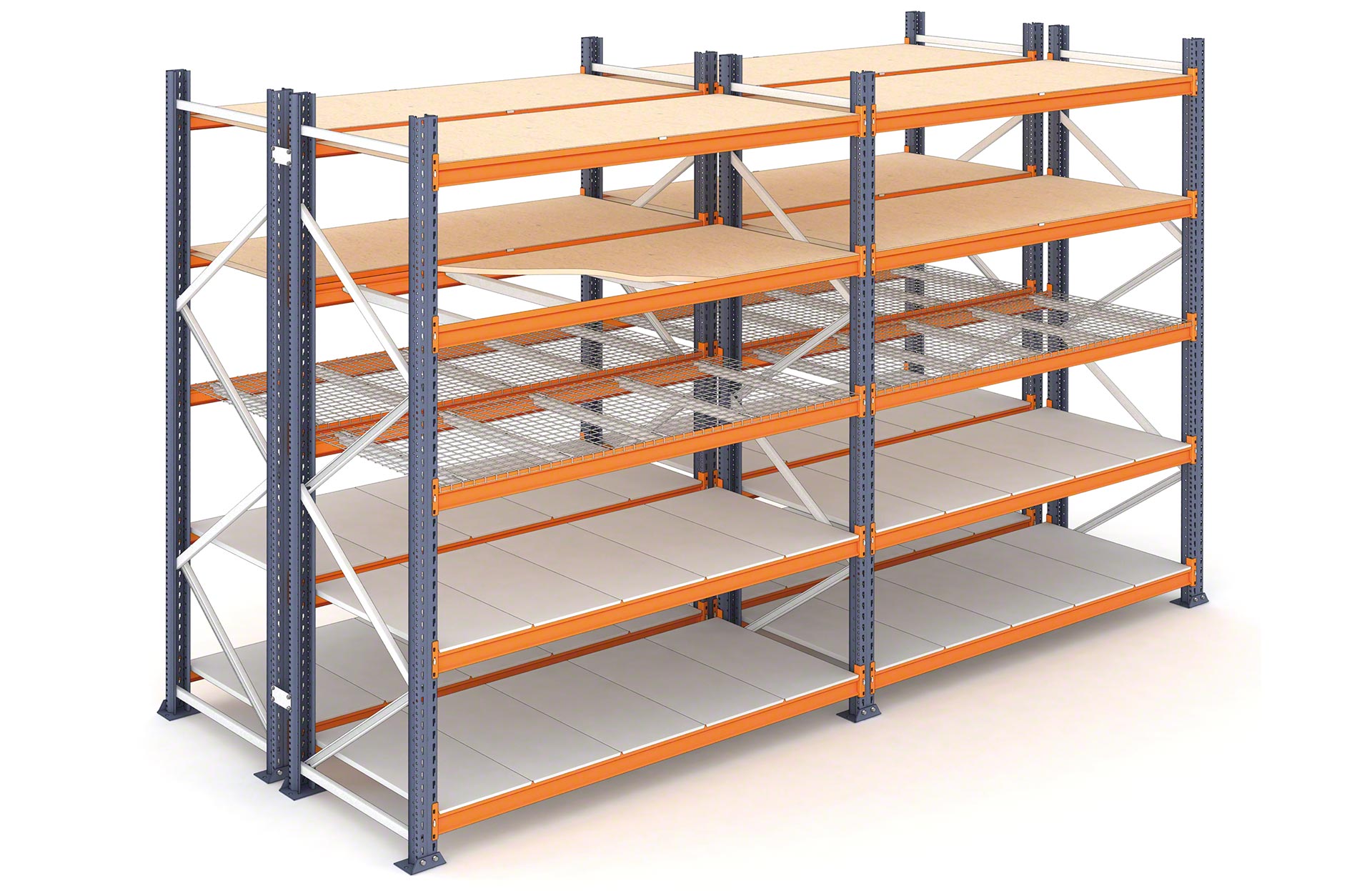

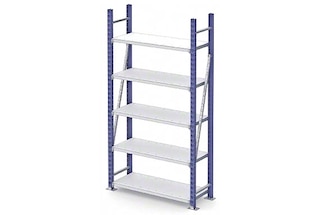

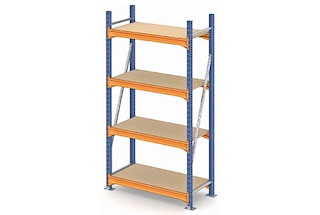

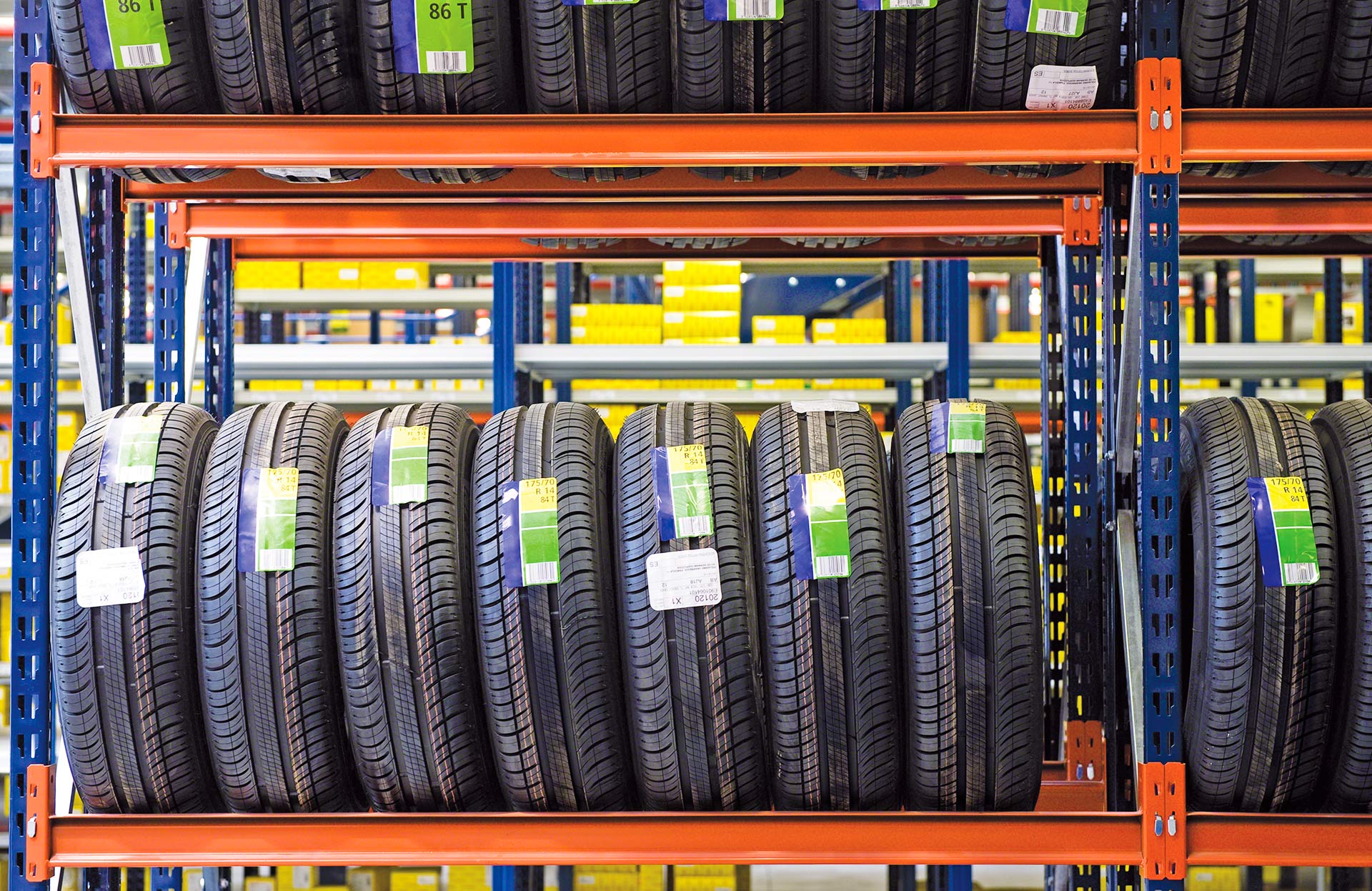

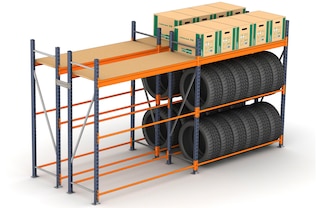

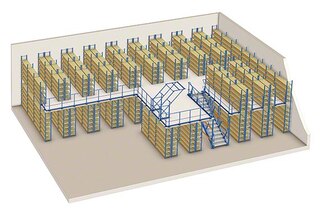

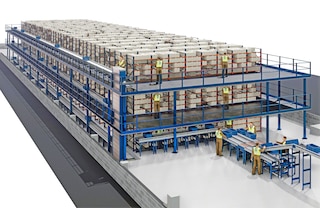

M7 heavy duty racks are available in various set-ups, making them adaptable to goods of different weights and sizes. These range from small parts to heavy, special-sized and bulky products such as tyres, pipes and profiles.

Testimonials

VST

The M7 heavy duty racks accommodate a large number of items and facilitate order picking.

Read more
Thierry Guillon Logistics Centre Manager
VST
(Les Essarts, France)
Decathlon Brazil

We’re extremely pleased with the storage systems from Mecalux. We now have more storage space and systems that adapt to the characteristics of our products. Plus, we can ensure much greater safety for our employees.

Read more
Thiago do Nascimento Logistics Manager
Decathlon Brazil
(Barueri, Brazil)
Grupo Morsa

The racks help us carry out our operations efficiently, especially order picking. Operators store and retrieve items from their locations more quickly.

Read more
Israel Jacinto Gertrudiz Operations Manager
Grupo Morsa
(Oaxaca, Mexico)

Case studies

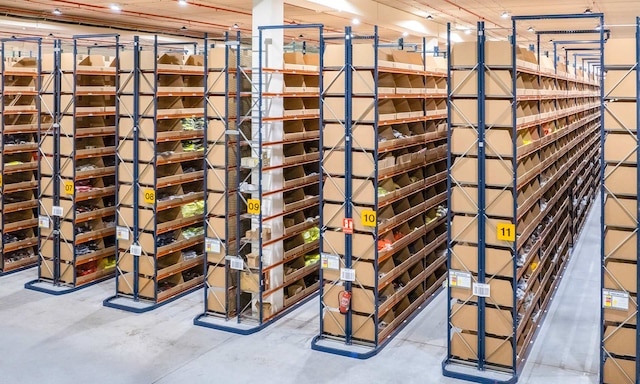

Würth Modyf: warehouse adorned with innovation

Würth Modyf, a Spanish company specialising in workwear, corporate uniforms and safety footwear, has renovated its supply chain. The business has moved to a new facility in Polinyà, Barcelona, equipped with the Easy WMS warehouse management system from Mecalux. Read more

The warehouse of Le Petit Vapoteur, French electronic cigarette manufacturer

Le Petit Vapoteur, a company specialising in the online sale of electronic cigarettes, has opened a new warehouse with the help of Mecalux. It has been equipped with picking shelves with gangways that comprise a total of three levels. These solutions make it easy to prepare 6,500 orders a day. Read more

The warehouse of Le Petit Vapoteur, French electronic cigarette manufacturer

Puccini: mezzanine floor with picking shelves

Travel luggage, handbag and leather goods manufacturer Puccini has doubled the capacity of its warehouse in Skarbimierzyce, Poland. To do so, it has installed a mezzanine floor to duplicate its useful storage area and has equipped it with M7 heavy-duty shelving by Mecalux. Read more

Puccini: mezzanine floor with picking shelves
See more case studies

Components of M7 heavy duty steel racks

As a heavy-duty rack manufacturer, Mecalux makes its M7 heavy duty racks and all other storage solutions from top-quality materials for increased reliability and safety.

The basic structure of M7 racks consists of frames, beams and shelves. These parts provide the storage system with the robustness and stability needed to multiple heavy and unwieldy loads.

The shelves constitute the flat surfaces that support goods on the various storage levels. Shelves can be placed on beams or supports and come in different materials and finishes.

M7 heavy duty racks include numerous safety features (some standard, others optional). They ensure the storage system’s stability and help prevent accidents that could affect operators or the goods stored.

Frames consist of uprights and diagonal braces

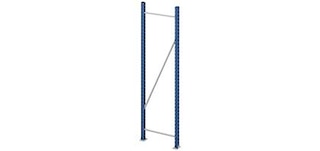

Frames

Vertical elements comprising two uprights connected by diagonal bracing, onto which the beams are fitted.

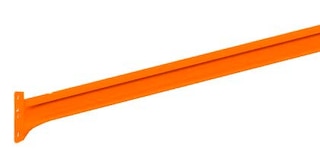

Beams are horizontal elements used to support the shelves and stiffen the racking system

Beams

Horizontal elements that support the shelves. Beams are joined to the uprights by connectors or clips. There are two types of beams: stamped and welded.

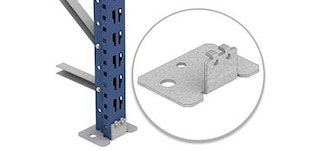

Uprights are anchored to the floor by frame footplates

Frame footplates

Frames are fixed to the floor via footplates, which are fitted to the base of the uprights. Different types of frame footplates are available depending on the upright model.

Shims are used for racks installed on irregular floor surfaces

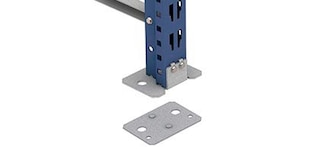

Shims (levelling plates)

Elements used to level racks installed on an irregular floor surface. Different shims are available for each upright model. They have different thicknesses for greater levelling precision.

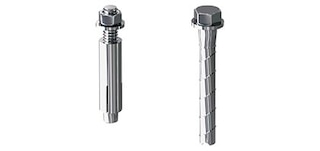

Anchor bolts secure M7 heavy duty racks to the floor

Anchor bolts

Components that secure the frame uprights to the floor. Anchor bolts vary depending on the strain the racking must bear and the characteristics of the floor.

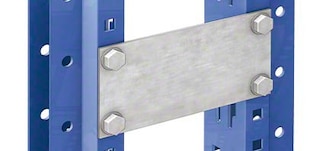

Frame unions reinforce the stability of double-sided racking

Frame unions

Steel parts used to join double-sided racks, giving them greater cross-aisle stability.

Frame splices connect two uprights vertically

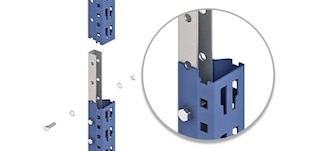

Frame splices

Elements that join two uprights vertically. They are used when single-piece frame uprights cannot span the entire height of the storage system.

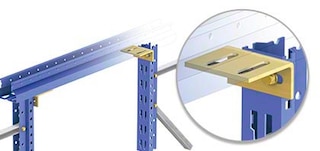

Portal ties ensure the transverse stability of high-bay racking

Portal ties

Parts used to connect the top of the racking units when their height calls for superior cross-aisle stability. Portal ties are installed when the height is seven times greater than the depth.

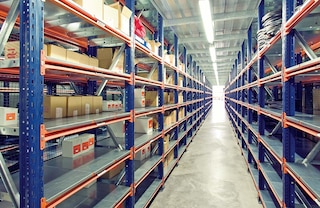

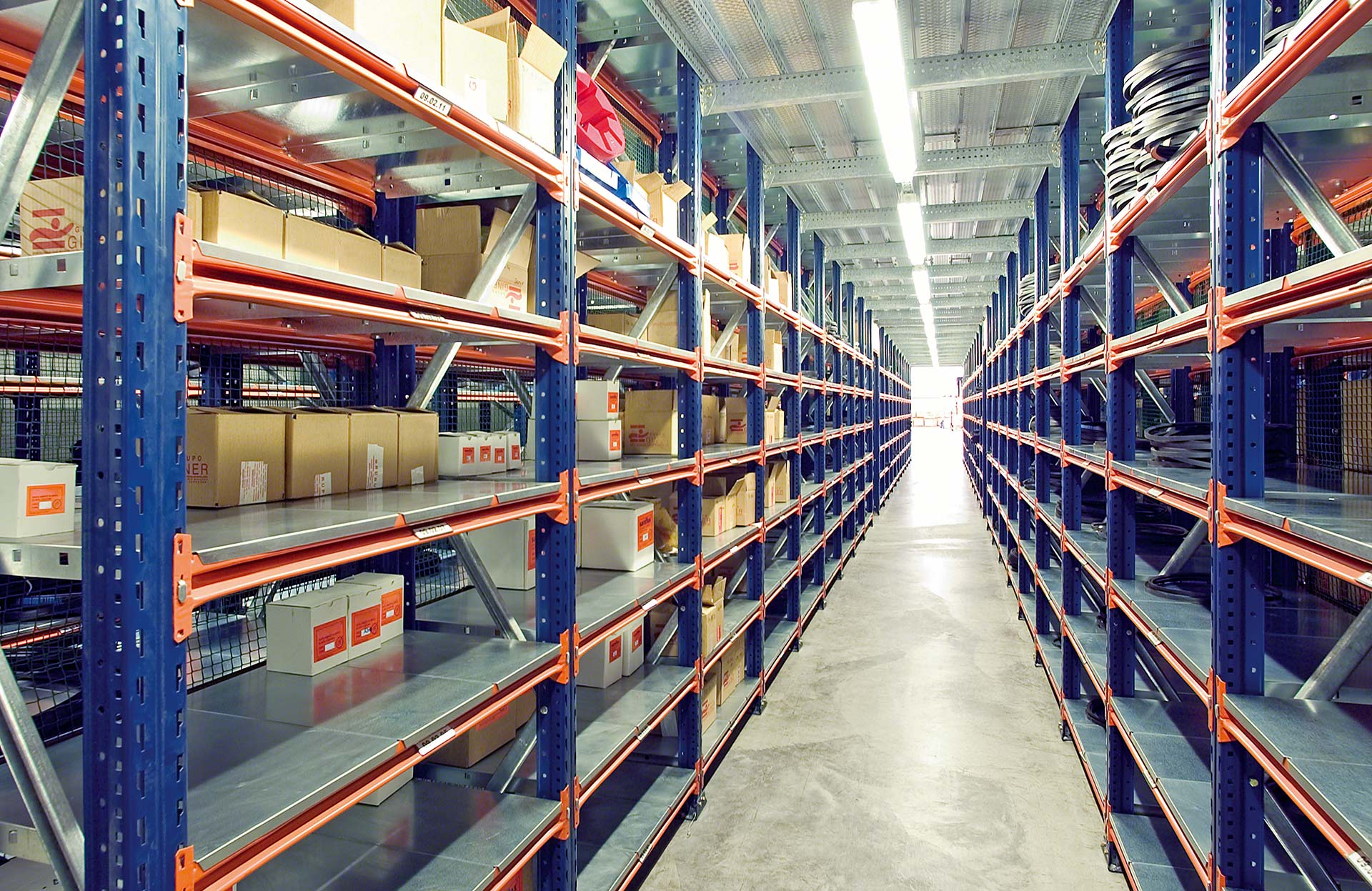

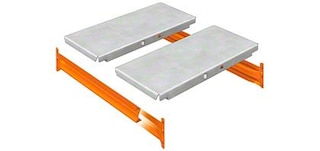

Galvanised shelves sit on the racking beams

Galvanised shelves

These rest on the beams. Each level contains several shelves of varying widths depending on the length of the level and the weight of the load to be stored.

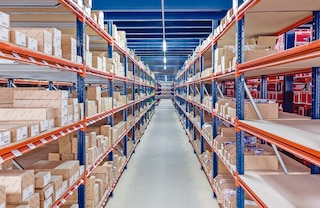

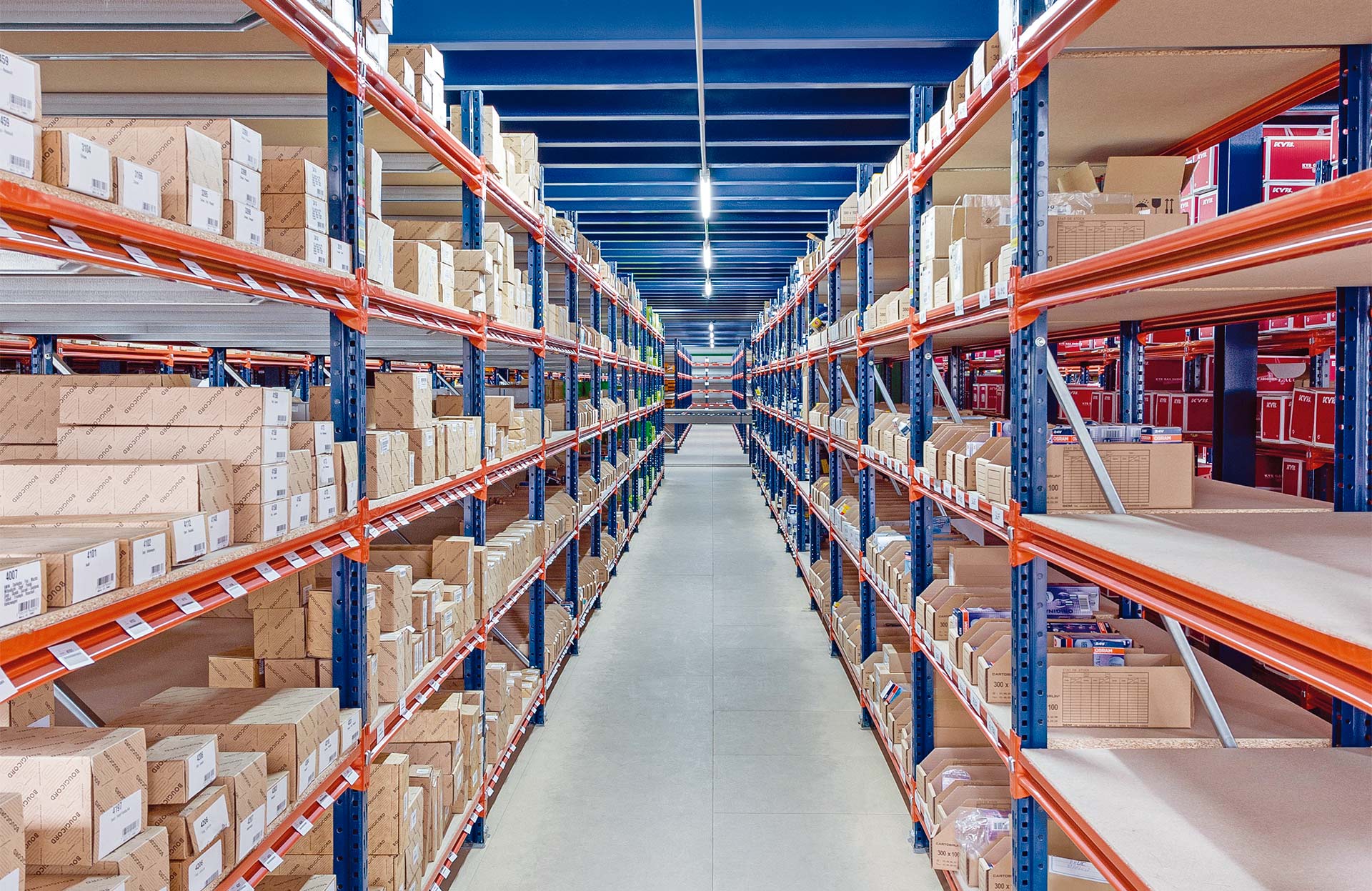

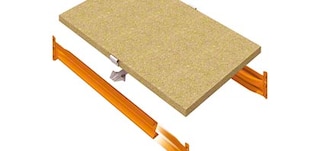

Chipboard shelves can incorporate a cross-tie to enhance their load capacity

Chipboard shelves

These are fitted between the beams. Their thickness and dimensions are tailored to the type of load each level must bear.

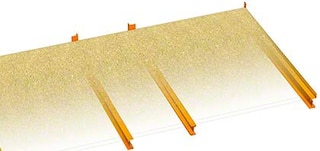

Double-deep chipboard shelving is used in very deep levels

Double-deep chipboard shelving

Shelves consisting of a single chipboard panel for very deep levels. The structure is reinforced by two beams placed in the centre.

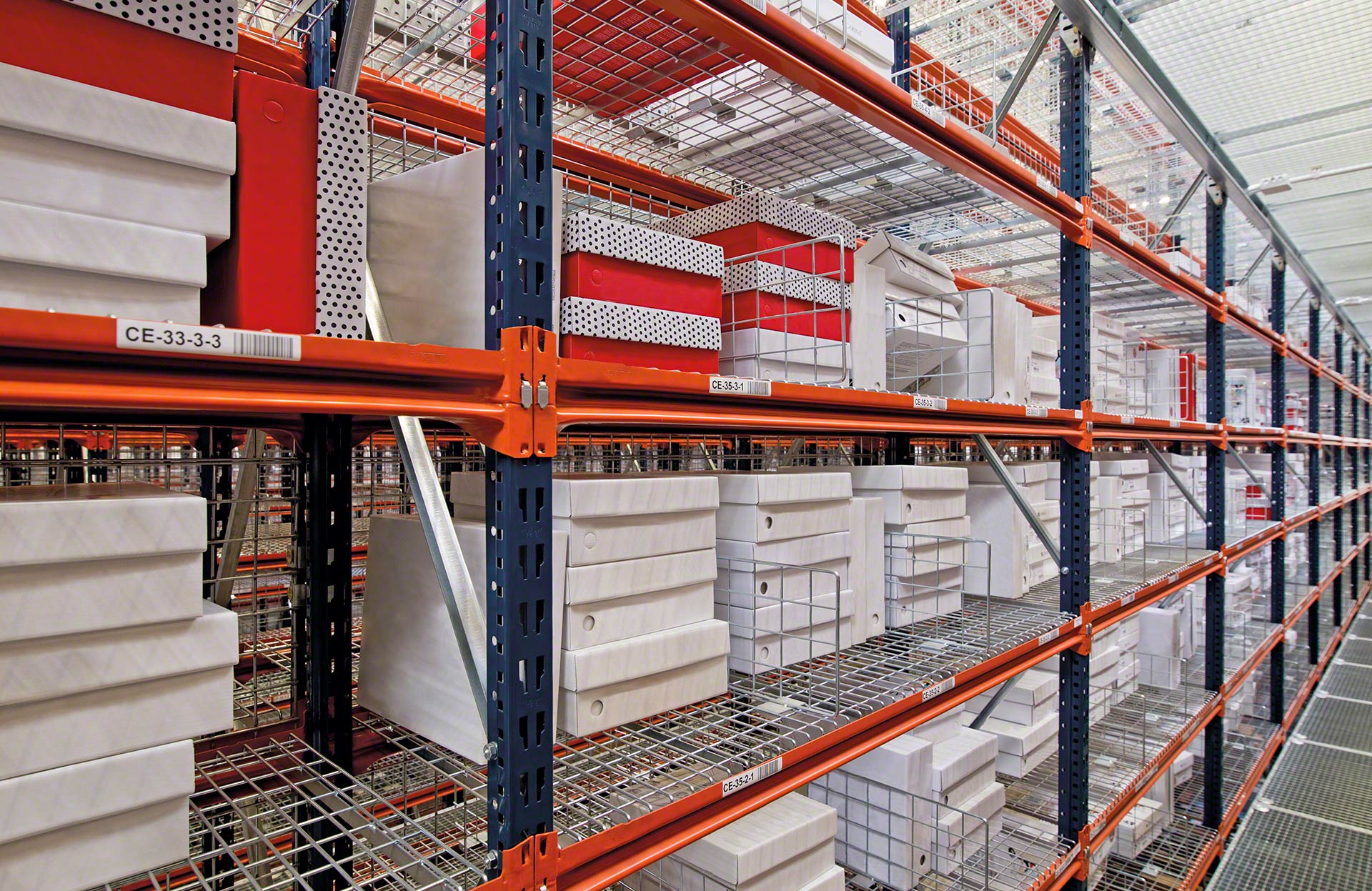

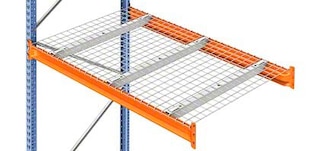

Mesh shelves are rectangular electro-welded metal grids that rest on the beams

Mesh shelves

Rectangular metal grids welded onto cross-ties. They rest on the beams and facilitate the ventilation of the stored goods and water flow if the fire safety system is activated.

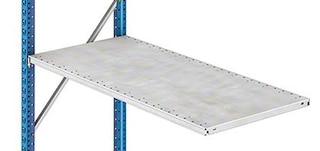

HM shelves are made of single-piece galvanised sheet metal

HM shelves

Made of single-piece galvanised sheet metal, these are used in levels comprising only shelves and supports (without beams).

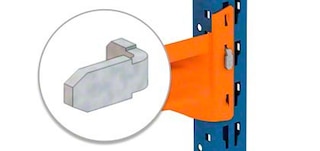

Safety pins prevent beams from dislodging accidentally

Safety pins

Metal parts inserted into the corresponding slot of each beam connector to prevent accidental displacement.

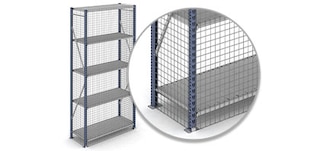

Side and rear mesh enclose the racks for increased safety

Side and rear mesh

Mesh panels that enclose the racks. They protect the stored goods and prevent products from falling or mixing with those on other levels.

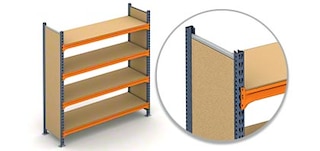

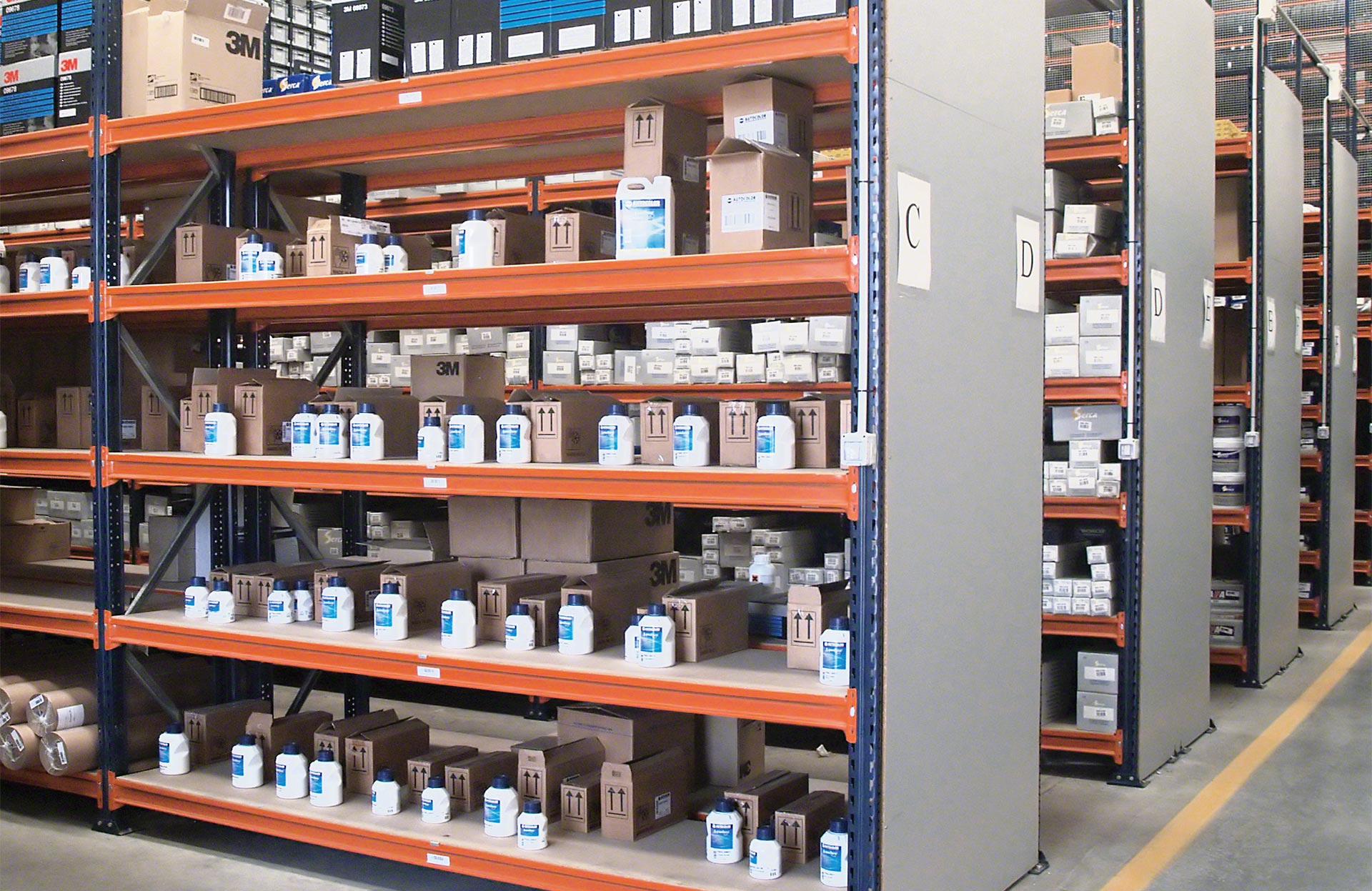

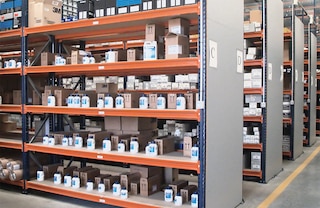

Chipboard side panels provide the racking with an attractive finish

Chipboard side panels

Panels that prevent stored merchandise from falling or mixing with products on other levels. They provide the racks with an attractive finish.

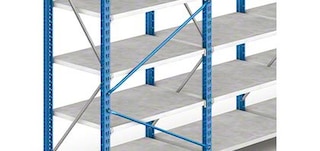

Los atirantados verticales se colocan en las M7 con paneles HM para reforzar su estabilidad

Vertical cross bracing

Tubular profiles with specially shaped ends. These braces are installed in racks with HM shelves to ensure down-aisle stability.

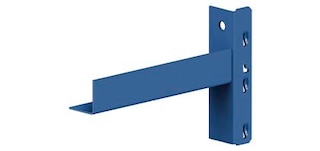

HD beams enhance the stiffness and stability of high-bay racking with HM shelves

HD beams

Components used to strengthen the stiffness and down-aisle stability of high-bay racking with HM shelves (without beams). These beams can also be used to increase the load capacity of the shelves.

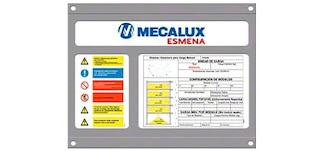

Safe load warning notices identify the technical characteristics of M7 heavy duty racks

Safe load warning notices

Signs detailing the storage system’s technical characteristics (maximum weight, height, etc.). These signage plates are placed in clearly visible areas on the ends of the racks.

Accessories for M7 heavy duty racks

Mecalux’s M7 heavy duty racks can be equipped with various accessories for enhanced versatility

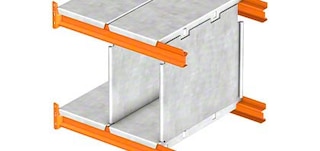

Galvanised shelf dividers create compartments within levels

Galvanised shelf dividers

Vertical dividers fitted between upper-level and lower-level shelves to create compartments on a specific level. They can be moved from side to side to adjust the size of the compartment.

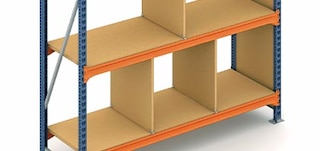

Chipboard shelf dividers are attached with top and bottom clamps

Chipboard shelf dividers

Panels fitted into their respective shelves with two upper and two lower clamps. They are used to create compartments within the same storage level.

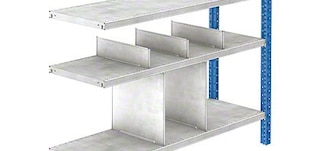

HM shelf dividers can be secured to the upper and lower shelves or the lower shelf only

HM shelf dividers

Panels fitted into the slots of the shelves. They can be attached to the top and bottom shelves (dividing the total height) or the bottom shelf only.

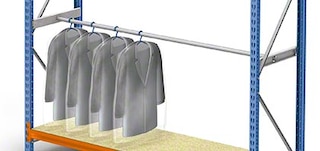

Hanger tubes are used to store hanging products

Hanger tubes

Components for storing hanging items, ensuring they do not protrude beyond the frame dimensions. They can be single or double.

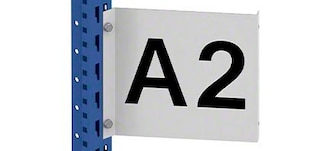

Signs facilitate the identification of M7 heavy duty racks

Signs

Rectangular plates attached to the ends of the racks, identifying them with letters or numbers.

Magnetic label holders identify products and levels

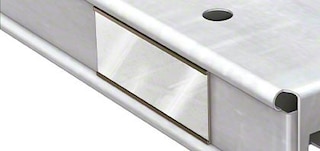

Magnetic label holders

Magnetised plastic profiles fitted to the front of HD shelves to indicate levels, compartments within the levels, or the products stored.

Catalogues

Catalog - 5 - M7-picking - en_GB

Heavy Duty Storage Racks (M7) (catalogue)

Storage system for heavy loads

Download
MS_Picking_2023_UK.pdf

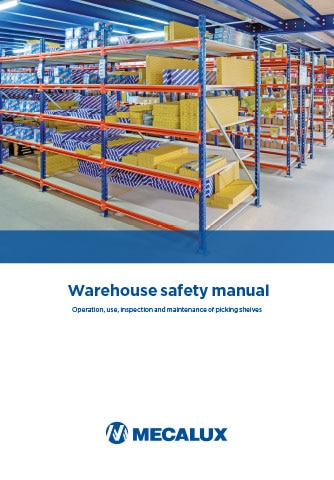

Warehouse safety manual

Operation, use, inspection and maintenance of picking shelves

Download

FAQs

Heavy duty racks are manual-access storage systems for large and/or heavy products. They are also commonly used for moderately weighted products.

The maximum weight supported by M7 heavy duty racking varies depending on its configuration (types of beams, shelves, etc.). The sturdiest combinations have a maximum load capacity of over 1,000 kg per level.

The M7 heavy duty steel racks come in several standard combinations to suit a wide variety of requirements. Available heights range from 1,000 to 3,000 mm, lengths from 1,000 to 2,700 mm and depths from 400 to 1,200 mm (though greater depth is possible through additional supports or a double frame).

Yes. Mecalux longspan shelving can be built to heights of up to 20 m. In storage systems under 12 m tall, the upper levels can be accessed using order picker machines. For heights exceeding 12 m, it is necessary to install raised aisles to access the upper levels.

To purchase an M7 heavy duty racking system, please contact Mecalux by phone or using the form available on this page.

M7 heavy duty racking is a versatile solution for housing a wide array of loads. These range from small parts, loose products, boxes and packages to hanging garments, tyres, odd-shaped items and unwieldy merchandise.

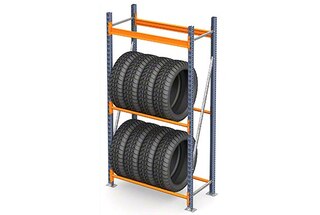

Yes, thanks to the different configurations available. The model with levels formed only by beams, for example, is suitable for large cylindrical items such as tyres and rims. Similarly, integrating single or double hanger tubes into the racks allows for storing hanging garments.

Mecalux’s M7 heavy duty shelving is quick, easy and safe to assemble. In just a few steps, the structure is fully assembled and ready for use.

Yes. The height of M7 heavy duty rack shelves can be adjusted in 50 mm increments. This customisation enables users to tailor the spaces on each level to the goods stored.

Yes. M7 heavy duty shelving is a fully scalable storage solution. It is easily expandable by adding additional modules available in various standard racking sizes.
